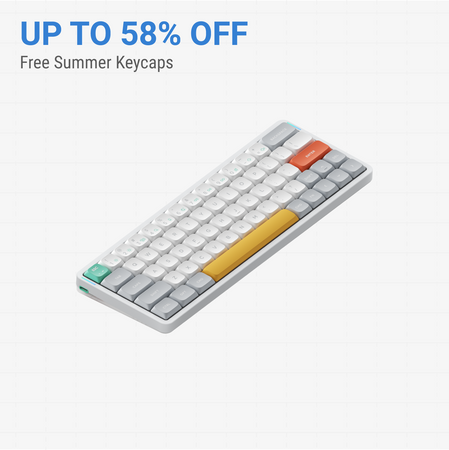

Nuphy Air60 V2 Mechanical Keyboard

The Air60 is a lightweight keyboard with advanced wireless performance, offering exceptional connectivity and flexibility. It's designed for mobile devices and maintains a modern design aesthetic. The keyboard offers both aesthetic and functional improvements from its predecessor.

Design

The Air60 maintains a minimalistic design with enhancements, including an improved bottom case that features a finer texture and greater transparency, revealing the keyboard's interior components.

Performance

Offering both Bluetooth and 2.4G connections, Air60 V2 continues NuPhy's tradition of supporting mobile computing devices. It's designed for portability without compromising on the experience, ensuring you feel comfortable working from any location.

Wireless Performance

The Air60 is equipped with a 1000Hz polling rate chip, ensuring a high-speed wireless performance. While the polling rate is impressive, the actual latency depends on other factors such as the matrix scan rate, processing and debounce time, and the wireless cache size. Benchmark tests have revealed exceptional latency performance, dispelling myths about low profile keyboards.

Firmware

Air60 V2 comes with QMK/VIA firmware, which offers users open source code, endless key remapping, light customization, and more. The firmware is compatible with all major desktop platforms and browsers, allowing for easy customization.

System Compatibility

The Air60 is compatible with various OS and laptop brands. It incorporates dedicated shortcuts for the latest MacOS and has implemented features from other NuPhy models.

Keycaps

The keyboard features double-shot PBT keycaps that are thin yet vibrant. There are also Dye-sub keycaps available, known for their sound quality and durable legends. A new set of low-profile shine-through keycaps is introduced for enhanced backlight effects.

Sound

Sound engineering has been a focus, resulting in improved sound performance for the keys, particularly the spacebar.

NuPhy Switches

Several low-profile switches are available, each with its unique characteristics in terms of travel, operating force, and materials.

• Aloe: Linear, 37gf, Pre-travel: 1.7±0.4mm, Total travel: 3.2±0.2mm
• Cowberry: Linear, 45gf, Pre-travel: 1.2±0.3mm, Total travel: 3.2±0.2mm
• Wisteria: Tactile,55gf, Pre-travel: 1.7±0.4mm, Total travel: 3.2±0.2mm
• Moss: Tactile,60gf, Pre-travel: 1.7±0.4mm, Total travel: 3.0±0.2mm

Gateron Switches

The Gateron switches have been upgraded to provide better tactile response, smoothness, and aesthetics.

• Red 2.0: Linear, 45gf, Pre-travel: 1.7±0.4mm, Total travel: 3.2±0.2mm
• Blue 2.0: Clicky,65gf, Pre-travel: 1.7±0.4mm, Total travel: 3.2±0.2mm
• Brown 2.0: Tactile,55gf, Pre-travel: 1.7±0.4mm, Total travel: 3.2±0.2mm

Hot-swappable

The Air60 is hot-swappable, allowing users to replace or upgrade switches without soldering. Four bonus switches are included in the package.

Lighting

The keyboard features RGB light bars on both sides, with the left showing caps lock and connection mode, and the right displaying battery level and system mode. Users can customize the lighting effects using the VIA configurator.

Accessories

NuPhy offers a range of accessories for the Air60, including the NuFolio and NuPack carrying cases. Each offers unique design features for portability and protection.

Specification

• Switch Type: Gateron Low-profile Mechanical (KS-33)
• Layout: ANSI 60%
• Number of Keys: 64
• Hot-swappable Support: Yes
• N-key Rollover Support: Yes
• Backlight: RGB-LED
• Backlight Patterns: 15
• Connectivity: Wireless 2.4GHz & Bluetooth 5.0
• Battery: Built-in Lithium-ion battery
• Dimension: 306mm x 109mm x 12mm
• Weight: 490g

Box Content

The Air60 V2 package includes the keyboard, a USB-C to USB-A cable, a 2.4G receiver, and a set of extra keycaps and switches.
